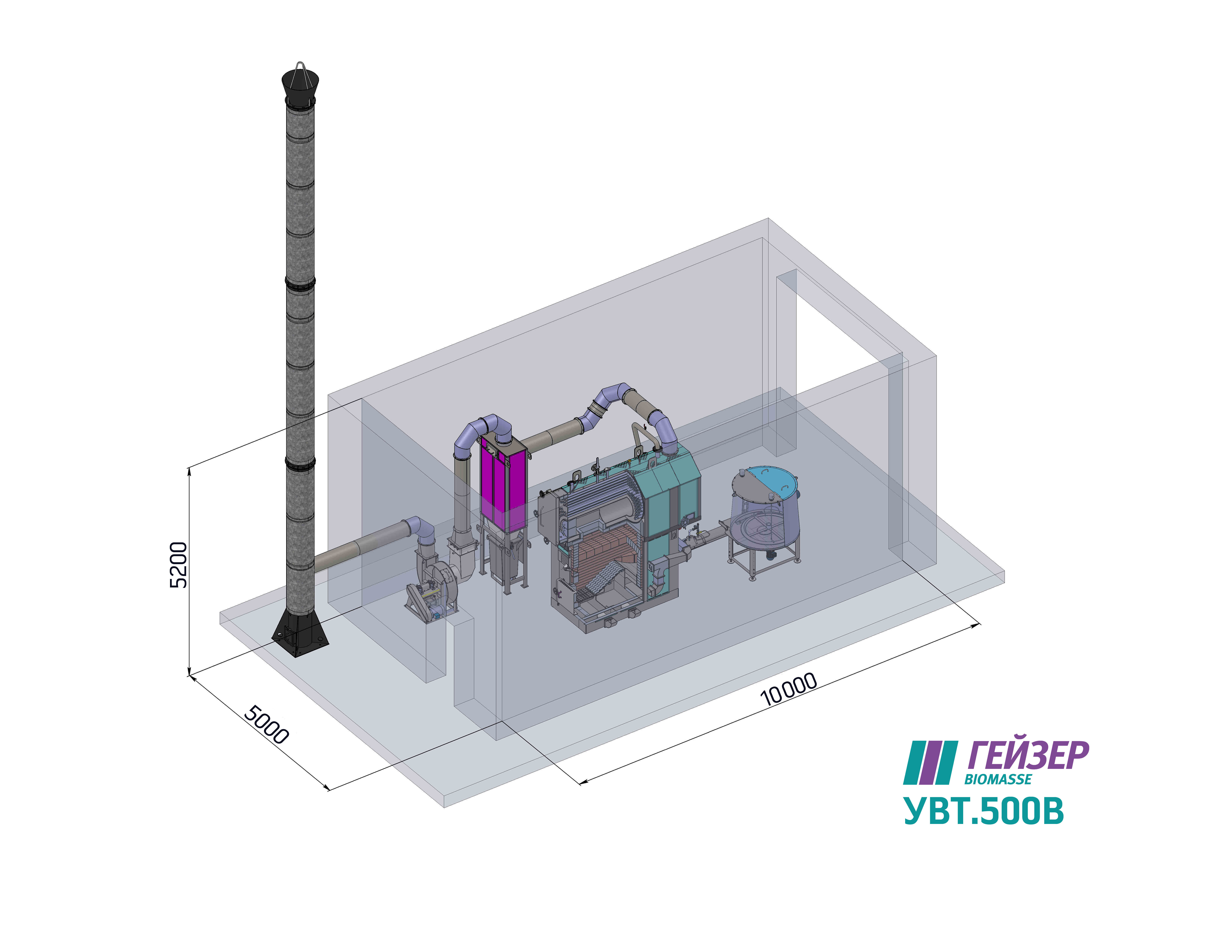

UVT.0500B

Name of indicators

Indicator

Boiler rated heat output, kW

500

Boiler minimum heat output, kW

200

Estimated type of fuel (wood chips, sawdust) GOST 33103.1-2014

- relative moisture, %

- calorific value, MJ/kg (kcal/kg)

- fuel consumption, kg/h

P16A

50

6,68(1800)*

266*

Efficiency, up to %

86*

Design pressure, MPa (kgf/cm²)

0,6 (6,0)

Minimum permissible heat carrier flow rate, m³/h

22

Maximum permissible heat carrier flow rate, m³/h

44

Maximum permissible hydraulic resistance of boiler at rated heat output, MPa MPa (kgf/cm²)

0,05(0,5)

Maximum heat carrier flow temperature, °C

110

Minimum heat carrier flow temperature, °C

70

Minimum permissible pressure at heat carrier flow temperature 95°C/110°C, MPa (kgf/cm²)

0,2(2,0)/0,4(4,0)

Exit gas temperature (max), °C

200*

Сombustion products oxygen content, %

7,5

Installed electric power, kW

1,5
