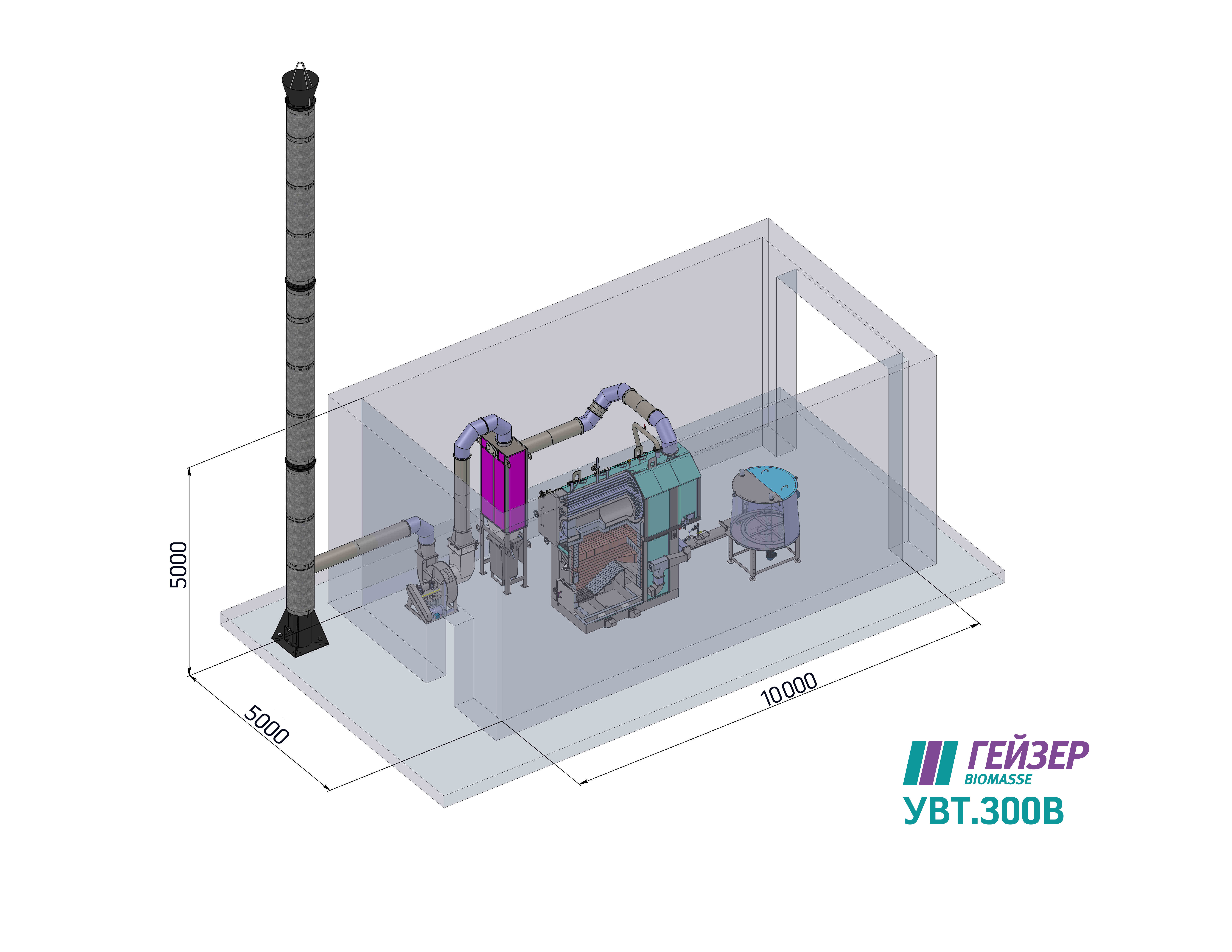

UVT.0300B

Name of indicators

Indicator

Boiler rated heat output, kW

300

Boiler minimum heat output, kW

100

Estimated type of fuel (wood chips, sawdust) GOST 33103.1-2014

- relative moisture, %

- calorific value, MJ/kg (kcal/kg)

- fuel consumption, kg/h

Р16А

50

6,68(1800)*

160*

Efficiency, up to %

80*

Design pressure, MPa (kgf/cm²)

0,6 (6,0)

Minimum permissible heat carrier flow rate, m³/h

13

Maximum permissible heat carrier flow rate, m³/h

26

Maximum permissible hydraulic resistance of boiler at rated heat output, MPa (kgf/cm²)

0,05(0,5)

Maximum heat carrier flow temperature, °С

110

Minimum heat carrier flow temperature, °С

70

Minimum permissible pressure at heat carrier flow temperature 95°С/110°С, MPa (kgf/cm²)

0,2(2,0)/0,4(4,0)

Exit gas temperature (max), °С

200*

Сombustion products oxygen content, %

7,5

Rated output power, kW

1,5
