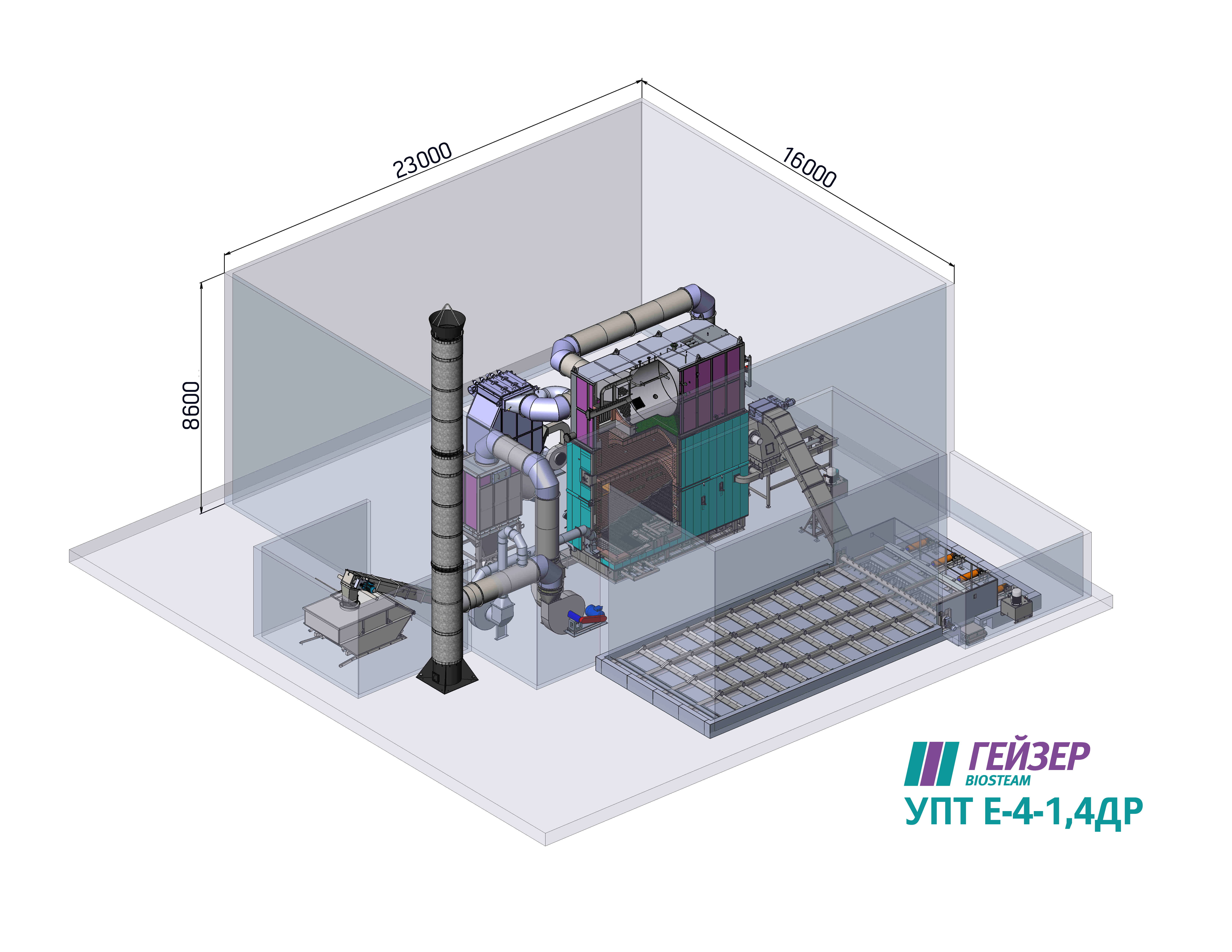

UPT E-4-1,4DR

Name of indicators

Indicators

Boiler steam rate, t/hr (kg/h)

Minimum allowable boiler steam rate, t/hr (kg/h)

4,0 (4000)
1,2 (1200)

Estimated type of fuel (wood chips, sawdust) GOST 33103.1-2014

— relative moisture, %

— calorific value, MJ/kg (kcal/kg)

— fuel consumption, kg/h

Р46А

60

5,7 (1360)^*

2160*

Efficiency, up to %

80^*

Design pressure, MPa (kgf/cm²)

1,4 (14,0)

Rated steam temperature at the boiler outlet, °C

195

Rated heat carrier flow temperature at the boiler inlet, °C

104

Exit gas temperature (max), °C

Сombustion products oxygen content, %

7,5

Rated voltage of a system, V

380

Installed electric power, kW

17,4

Boiler weight (dry), kg

Furnace weight, kg

Heat exchanger weight, kg

Afterburning chamber weight, kg

45500

16000

11000

18500

Boiler overall dimensions, mm:

Length (L)

Width (W)

Height (H)

5770

3530

7200
